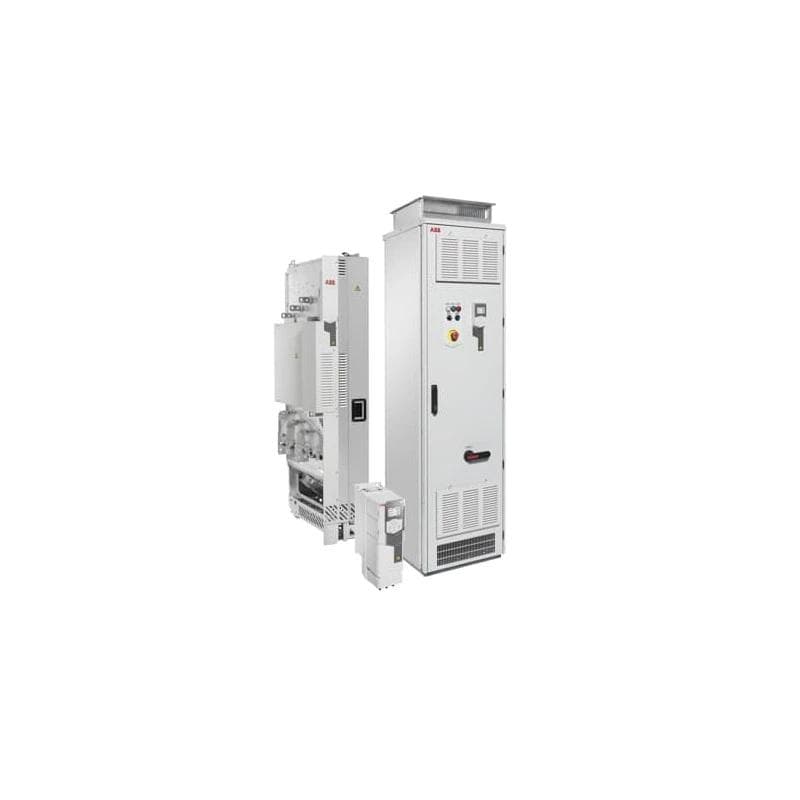

ABB ACS580-01-145A-4
ABB ACS580-01-145A-4 is a wall-mounted ACS580 general-purpose drive in the 400 V class, rated at 75 kW and 145 A in frame R7 for larger pumps, fans, conveyors, compressors, and similar plant loads.
Broader comparison
At 75 kW, the useful question is whether the machine is still a clean general-purpose ACS580 application. If it is, stay in ACS580. If the process needs stronger torque behavior, richer option strategy, or a tougher control profile, use ACS880 as the real comparison branch.
Specifications
Product family
ABB ACS580-01
Exact model
ACS580-01-145A-4
Drive type
LV AC general-purpose wall-mounted drive
Output power, normal use
75 kW
Output current, normal use
145 A
Input voltage class
400 V class / 380-480 VAC
Input phase
Three-phase AC
Input frequency
50/60 Hz class
Protection class
IP21 / UL Type 1
Frame size
R7
Mounting
Wall-mounted cabinet installation
Motor control role
General-purpose speed and torque control for standard AC motors
EMC posture
ACS580-01 400 V class drive with EMC filtering in the configured product family
Common applications
Pumps, fans, conveyors, compressors, mixers, and process auxiliaries
