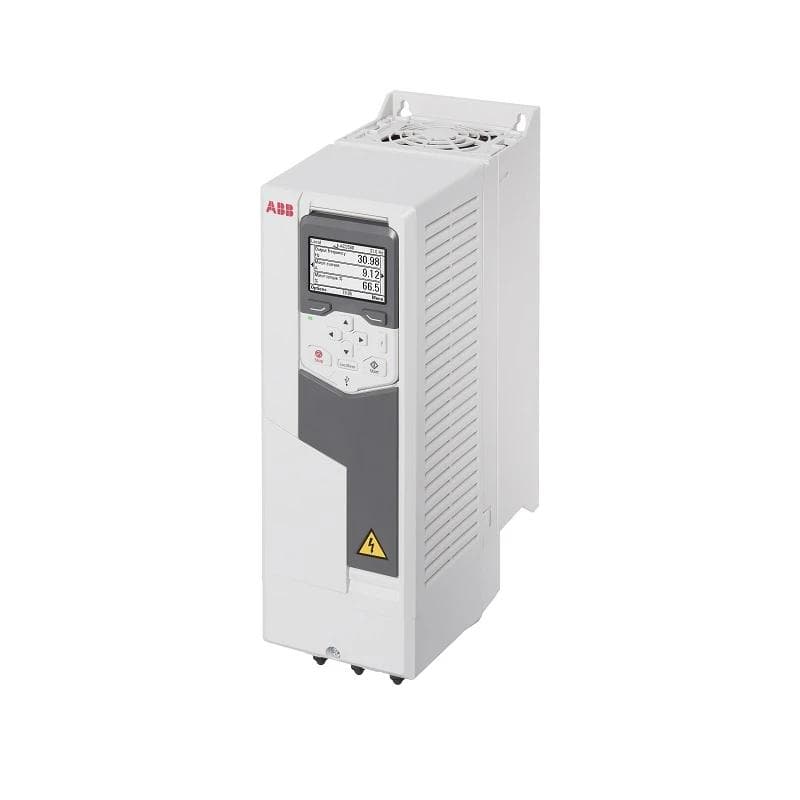

ABB ACS580-01-169A-4
ABB ACS580-01-169A-4 is a wall-mounted ACS580 general-purpose drive in the 400 V class, rated at 90 kW and 169 A in frame R7 for high-capacity pumps, fans, conveyors, and other mainstream plant loads.
Broader comparison
Do not move out of ACS580 just because the rating is larger. The right boundary is still application complexity. Stay with ACS580 when the machine is a standard variable-speed load. Compare with ACS880 when the control problem itself has become more demanding.
Specifications
Product family
ABB ACS580-01
Exact model
ACS580-01-169A-4
Drive type
LV AC general-purpose wall-mounted drive
Output power, normal use
90 kW
Output current, normal use
169 A
Input voltage class
400 V class / 380-480 VAC
Input phase
Three-phase AC
Input frequency
50/60 Hz class
Protection class
IP21 / UL Type 1
Frame size
R7
Mounting
Wall-mounted cabinet installation
Motor control role
General-purpose speed and torque control for standard AC motors
EMC posture
ACS580-01 400 V class drive with EMC filtering in the configured product family
Common applications
Pumps, fans, conveyors, compressors, mixers, and process auxiliaries
